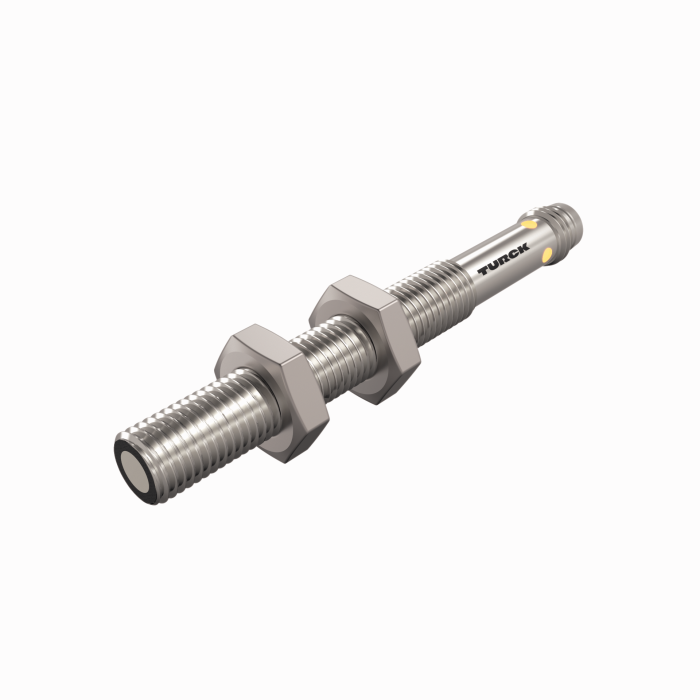

Produit  RU10U-M08-UN8X-V1141

Détecteur ultrasonique

Détecteur en mode diffus

Numéro de commande: 100003158
    • Face lisse de transducteur acoustique
    • Format cylindrique M08, surmoulé
    • Raccordement par connecteur M8x1
    • Plage d'apprentissage réglable par câble de raccordement
    • Zone morte : 2 cm
    • Portée : 10 cm
    • Résolution : 0,2 mm
    • Angle d'ouverture du lobe acoustique : +/- 9°
    • 1x sortie de commutation, NPN
    • réglable par Teach-in
    • paramétrable N.O. / N.F.
    • IO-Link
#
Hide All Open All

Algemene gegevens

EAN 4047101476125
eCl@ss-Code (V5.1.4): 27272803 -/- ultrasone naderingsschakelaar
Goederencode 85365019000
Land van herkomst DE
Gewicht 24  g

Technische gegevens

Functie Naderingsschakelaar
Bedrijfsmodus Looptijd

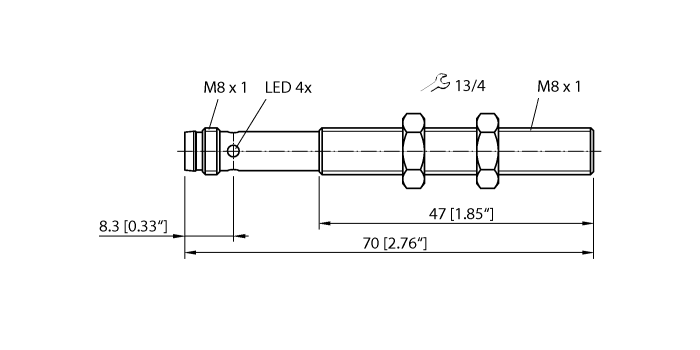

Bouwvorm schroefdraad
Bouwgrootte M8 x 1
Reikwijdte 20…100 mm
Resolutie 0,2 mm
Bedrijfsspanning 15…30 VDC
Schakelelementfunctie N.O. / N.C.
Uitgangsfunctie NPN
Communicatieprotocol IO-Link
Elektrische aansluiting Connector, M8 × 1
Materiaal behuizing metaal, CuZn, vernikkeld
Omgevingstemperatuur 0…+50 °C
Beschermingsgraad IP67
Certificaten CE, cULus

Montagetoebehoren

MW08

Bevestigingsbeugel voor sensoren met schroefdraad; materiaal: roestvast staal A2 1.4301 (AISI 304)

 6945008
BSS-08

Bevestigingsklem voor sensoren met gladde buis of schroefdraad; materiaal: Polypropyleen

 6901322

Aansluittoebehoren

PKG4M-2/TEL

Aansluitkabel, M8-contraconnector, recht, 4-polig, kabellengte: 2 m, mantelmateriaal: Pvc, zwart; cULus-goedkeuring

 6625061
PKW4M-2/TEL

Aansluitkabel, M8-contraconnector, haaks, 4-polig, kabellengte: 2 m, mantelmateriaal: Pvc, zwart; cULus-goedkeuring

 6625067
PKG4M-2-RSC4.4T/TXL

Verlengkabel, M8-contraconnector, recht, 4-polig naar M12-connector, recht, 4-polig, kabellengte: 2 m, mantelmateriaal: PUR, zwart; cULus-goedkeuring

 6627063

Functietoebehoren

TBEN-S2-4IOL

compacte multiprotocol-I/O-module, 4 IO-Link master 1.1 klasse A, 4 universele digitale PNP-kanalen 0.5 A

 6814024
USB-2-IOL-0002

IO-Link master met geïntegreerde USB-interface

 6825482
