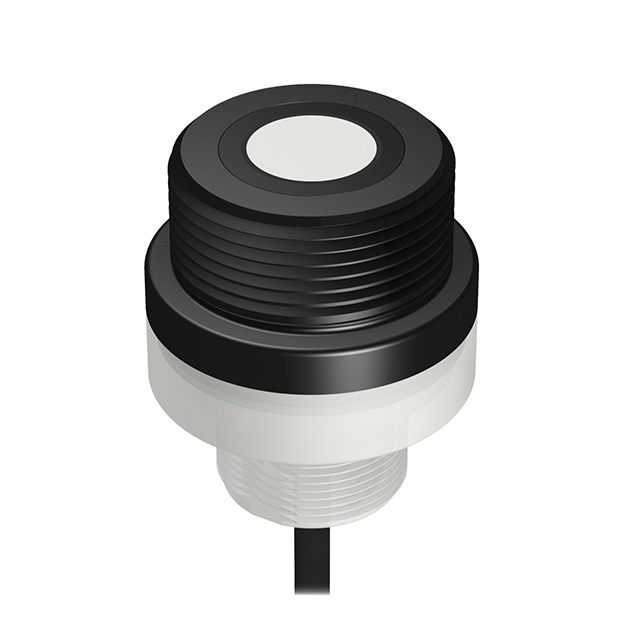

Product DX80N2Q45U
Radiotransfersysteem
Stertopologie
Knooppunt voor het aansluiten van externe sensoren
Bestelnummer: 3800203Altern. bestelnummer : 800203
- Beschermingsklasse IP67

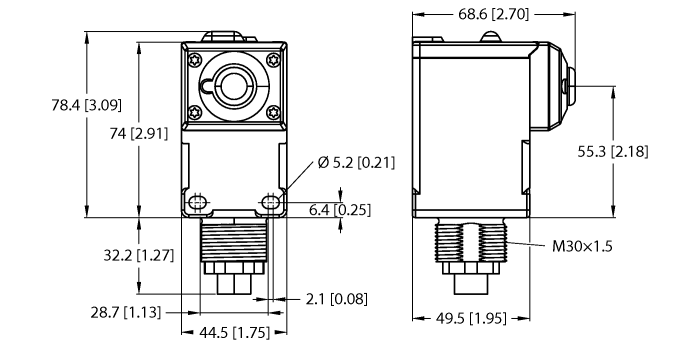

- mechanische schroefdraad, M30 x 1,5
- Aansluiting via koppeling, M12 x 1, 4-polig
- Geïntegreerd, meerkleurig indicatielampje
- 2,4 GHz-frequentieband
- Frequentiesprongprocedure FHSS
- Timeslot-procedure TDMA
- Bedrijfsspanning: 3,6…5,5 VDC
- Stroomverbruik: ≤ 100 µA
- Voeding via 2 AA 3,6 V li-ion-batterijen, meegeleverd
- FCC‐ID UE300DX80‐2400‐ Dit apparaat beantwoordt aan FCC paragr. 15, sub-paragr. C, 15.247 ETSI/EN: In overeenstemming met EN 300 328: V1.7.1 (2006‐05)IC: 7044A‐DX8024
- Stralingsimmuniteit 10 V/m voor 80-2700 MHz volgens EN 61000-6-2
Algemene gegevens
EAN | 662488001407 |
eCl@ss-Code (V5.1.4): | 27250312 -/- communicatie-interface, actief |
Goederencode | 85176200000 |
Land van herkomst | US |
Gewicht | 312 g |
Technische gegevens
Apparaattype | Draadloze sensor |
Bouwvorm | Rechthoekig |
Antenne-aansluiting | intern (kabellus) |
Batterij-oplossing | Ja |
Communicatieprotocol | 1-wire-serial |
Ingangstype | 1-wire serial |
Uitgang | 4-kleurige LED-indicator |
Elektrische aansluiting | Connector |
Materiaal behuizing | Kunststof, PBT Lexan, zwart |
Omgevingstemperatuur | -40…+70 °C |
Beschermingsgraad | IP67 |
